Comparative Analysis of Experimental -Based Wear Rate Investigation of Different Coatings on Nitrided AISI H13 Tool Steel

Patharkar US1*, Patil SA2
DOI:10.5281/zenodo.15782893

1* Umesh Subhash Patharkar, Research Scholar, Department of Mechanical Engineering, Government College of Engineering, Aurangabad, Maharashtra, India.

2 Sunil Apparao Patil, Assosiate Professor, Department of Mechanical Engineering, Government College of Engineering, Jalgaon, Maharashtra, India.

The research investigates the tribological behavior of Titanium Carbide (TiC) and Chromium Nitride (CrN) and Aluminum Titanium Nitride (AlTiN) coatings used on gas-nitrided AISI H13 tool steel when operating under multiple conditions. The Taguchi L9 orthogonal design evaluated how coating type together with temperature (40–50 °C) and load (5–15 N) affect wear rate measurements. A tribometer tester performed the wear tests and were determined by applying the circular segment method to assess the cross-sectional area of the tracks formed during testing.. The multiple linear regression prediction model for wear rate performance exhibited an error margin of less than 10% throughout every experimental trial. The statistical results from analysis of variance (ANOVA) showed coating type to be the main contributor to wear variation (p = 0.002). Within the set of tested coatings AlTiN established the highest degree of wear resistance during optimized conditions. The verification tests confirmed the accurate forecasting capabilities of the predictive model for regression while showing that duplex surface modifications work properly. Results show that using AlTiN-coated nitrided AISI H13 steel makes it possible to deploy these tools in demanding high-temperature applications which need exceptional wear protection.

Keywords: taguchi method, analysis of variance, signal to noise (s/n) ratio, optimization, wear rate, coating type

Corresponding Author How to Cite this Article To Browse
Umesh Subhash Patharkar, Research Scholar, Department of Mechanical Engineering, Government College of Engineering, Aurangabad, Maharashtra, India.
Email: 		Patharkar US, Patil SA, Comparative Analysis of Experimental -Based Wear Rate Investigation of Different Coatings on Nitrided AISI H13 Tool Steel. Appl Sci Eng J Adv Res. 2025;4(3):32-38.
Available From
https://asejar.singhpublication.com/index.php/ojs/article/view/151

Manuscript Received Review Round 1 Review Round 2 Review Round 3 Accepted
2025-04-12 2025-04-30 2025-05-19
Conflict of Interest Funding Ethical Approval Plagiarism X-checker Note
None Nil Yes 2.93

© 2025 by Patharkar US, Patil SA and Published by Singh Publication. This is an Open Access article licensed under a Creative Commons Attribution 4.0 International License https://creativecommons.org/licenses/by/4.0/ unported [CC BY 4.0].

Appl Sci Eng J Adv Res 2025;4(3)32
Download PDFBack To Article1. Introduction2. Experimentation3. Results and
Discussion4. ConclusionsReferences
Patharkar U.S., et al. Comparative Analysis of Experimental -Based Wear Rate Investigation

1. Introduction

The need for high-performance tool steels when used in applications such as die casting, hot forging, and extrusion has pushed for rapid advancement of surface engineering technologies [1]. AISI H13 tool steel has found its application in these areas because of its high toughness quotient, thermal fatigue strength, and high temperature strength. But during the long time usage, AISI H13 suffer from wear, oxidation and thermal fatigue problems, which reduced its performance and lifetime [2]. To address these issues, there is a great need to define surface modification techniques that enhance wear on the surface without changing the mechanical properties of the substrate [3]. Co-Stereo heat-treating that involves nitriding and coating have been proved to increase the tribological performance of tool steel. Gas nitriding promotes a formation of a diffusion layer that increases the load-bearing capacity of the substrate and PVD coatings provide enhanced properties of hardness, oxidation as well as low frictional surfaces. Among the applied coatings for such applications, TiC, CrN, and AlTiN are the most investigated coatings for their tribological properties. However, all these coatings have not been mentioned and comprehensively compared especially when used on nitrided AISI H13 under different thermo-mechanical conditions in the literature. Wear resistance is one of the prime criteria which have a direct impact on the service life, productivity and management cost of tooling items [4-9]. Although individual and nitriding effects of each coating layer and different mechanical load, and operating temperatures have been studied in previous works, statistical and modeling have not been applied; also, there is no integrated and comprehensive reference source that offers a combined and comparative study of coating type, mechanical load, and operating temperature for which this work is designed to address [10-14].

The research evaluates TiC, CrN, and AlTiN coated tribological behavior on gas-nitrided AISI H13 tool steel through a systemically designed experimental protocol. Test experiments based on Wear evaluation were performed through Pin-on-Disc tribology equipment across 40°C to 50°C temperature ranges and 5 N to 15 N force capacities. The Taguchi L9 orthogonal array functioned to identify how coating type and load force and temperature values affect the wear rate.

A multiple linear regression analysis was established to predict experimental parameters that affect wear rate while ensuring the prediction error remains below 10%. Confirmation experiments tested the accuracy of the developed model. This investigation has three specific research objectives which are:

[1] The evaluation aims to identify TiC, CrN or AlTiN as the most suitable coating to minimize wear under high temperature and heavy load conditions.
[2] The creation of a regression model for wear behavior prediction will focus on achieving high precision and small prediction errors.
[3] The model and optimized conditions will undergo confirmation testing for practical reliability verification.

This research creates an optimized framework to enhance AISI H13 steel surface durability through the use of duplex treatment alongside statistical optimization and predictive modeling. The research results show usefulness for tooling system sectors such as automotive, aerospace and heavy machinery manufacturing because they deliver reduced wear and longer tool service durations which bring substantial operational and economic advantages.

2. Experimentation

2.1 Methodology and Optimization Techniques

Optimization is a common technique applied to improve product designers, processes, and organizational outcomes. In the tribological systems, it was established that wear rate could be reduced through treatment in many ways. It can therefore be acknowledged that applying a number of surface engineering methods is the best since it offers statistically significant findings and conclusions. Some of the familiar approaches of optimization that are used during the process and product amplification are the Build-test-fix strategy, the Design of experiments, and the one variable at a time. In this work, wear rate is taken as a dependent variable which depends on some input variables which include coating type, applied load and temperature. Initially, the values of the stochastic parameters for the problem are determined using a preliminary OVAT analysis in order to determine the optimum range for each parameter [15-17].


Appl Sci Eng J Adv Res 2025;4(3)33
Patharkar U.S., et al. Comparative Analysis of Experimental -Based Wear Rate Investigation

Thus, the use of the Taguchi technique follows to systematically control the influencing factors. L9 orthogonal array is used in order to get maximum information form minimum number of experimental runs. The general format of orthogonal array is an L ^{k} (t) where L is the number of rows or levels and k is the number of columns or factors and t is number of symbols or strength of the orthogonal array [15-17].

OA = Ln (Xm)

X = n number of experiments,

m = number of parameters under consideration

L9 array is used to create design with three parameters in three levels which helps in optimise the experiment efficiency and data strength. Finally, in order to determining the significance of each parameter towards the overall wear behaviour, the Analysis of Variance (ANOVA) is done. The software used for the analysis of statistical data collected is the Minitab 19 that helps in making decisions on which statistician parameters to use.

2.2 Experimental Setup

Table 1 states the specification of the Tribometer setup used in this study. All the experiments were conducted Government engineering College, Aurangabad, and Maharashtra, India.

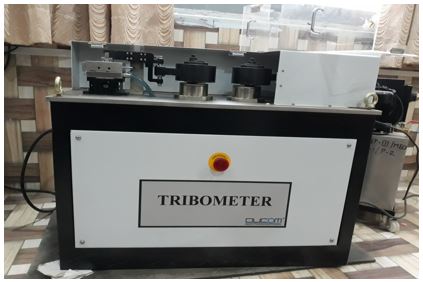

Figure 1: Tribometer Setup

Table 1: Specifications of LTR Setup

Make ModelDucom Ltd., Banglore, India
Upper SpecificationPin(dia. × 1)- Φ4×15mm, Φ6×15mm, Φ8×15mm, Φ10×15mm.
Pin Rectangular (l×b×h)-4×6×15
Pin Square (l×b×h)- 4×4×15mm, 6×6×15mm, 8×8×15mm.
Ball- Φ10mm
Lower SpecificationRectangular Block (l×b×h)- 40×40×5, 30×30×5, 20×20×5mm
Lower SpecificationEN-31 Steel
Lower Specification Hardness60 HRC
Stroke Length Range10, 20 30 fixed.
Load Range5 to 100 N (In step of 5N)
Temperature RangeAmbient 0oC to 200o C, Ambient 200 to 200o C (For Both Lubrication). Least count..-0.21oC, Sensor: PT-100
Frequency (Speed) Range11-20Hz(1200rpm) Least count: 1rpm, Sensor, Proximity Sensor
Frictional Force0.1-100N Least Count: 0.1N, Sensor- Piezo Sensor
Wear Measurement Range±2 mm, with least count 1 micron
Water Supply2-5 lpm Provision inbuilt for internal connection. Connect the tap water from outside while conducting heating test.
Power230 V× 1 Φ×50Hz,8A(For Tester)

2.3 Substrate Preparation and Coating

AISI H13 tool steel samples measuring 20 mm × 20 mm × 5 mm originated from commercial material. Industrial surface engineering studies needed materials with high hot hardness and thermal fatigue resistance so the researchers selected this material.

The substrate material used in this research was rectangular samples of AISI H13 tool steel because of its suitability in high temperature service industries. Nitriding gas was conducted at process parameters which included 400 ⁰C temperature for 24 hours in order to achieve a hardness diffusion layer on the substrate so that it can overcome load carrying capacity. After nitriding was done in the samples, 3 types of hard coatings namely Titanium Carbide (TiC), Chromium Nitride (CrN) and Aluminum Titanium Nitride (AlTiN were coated on the surface.


Appl Sci Eng J Adv Res 2025;4(3)34
Patharkar U.S., et al. Comparative Analysis of Experimental -Based Wear Rate Investigation

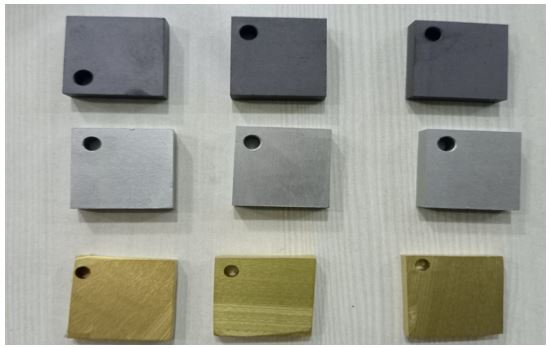

Figure 2: Coated Samples

3. Results and Discussion

In order to analyze the effect of input parameters-temperature, load and coating type on wear, efficient statistical software was used in the current research study. Further, the wear rate was fitted, and ANOVA analysis was carried out to determine the influence of each parameter on the wear rate. To predict wear rate values efficiently a multiple linear regression model was also constructed.

3.1 Experimental Result

Table 1 presents the L9 orthogonal array, detailing the wear rate measurements for experiments one through nine. Additionally, it includes the signal-to-noise (S/N) ratios corresponding to each experiment.

The S/N ratio values were calculated using Minitab 19 software. It is observed that the variation in S/N ratios is minimal across all experiments.

The Signal-to-Noise (S/N) ratio is a measure used in quality control and optimization processes, particularly in experiments like those using the Taguchi method. It quantifies the variation in a response (signal) relative to the unwanted variation (noise), helping to identify the most optimal settings for a given process.

Table 2: L9 orthogonal array with response characteristic

ExperimentsInputs FactorsOutput Responses
Trial No.Coating TypeTemperature (°C)Load (N)Wear Rate (mm³/N·m)S/N Ratio
1CrN4050.074822.5220
2CrN45100.077622.2028
3CrN50150.081121.8196
4AlTiN40100.066523.5436
5AlTiN45150.071922.8654
6AlTiN5050.066923.4915
7TiC40150.080121.9273
8TiC4550.078422.1137
9TiC50100.078822.0695

3.2 Main Effects of Wear Rate

Optimal conditions for the characterization of superior performance were determined using the signal to noise analysis conducted in Minitab 19 software package. The parameters for the whole S/N ratio experiments including the 1st test were scrutinized carefully. By analyzing the findings of Graph 1 the highest response graph values were observed at the optimal wear rate.

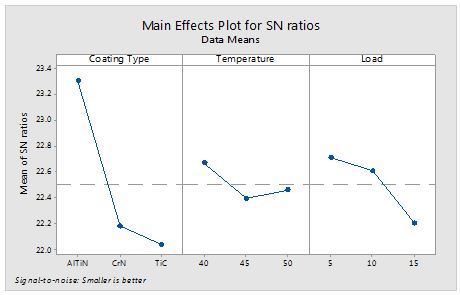

Figure 3: Main Effects Plot for S/N Ratio

The analysis identified the optimal input parameters as follows: AlTiN (level 2), Temperature 40°C (level 1), and a Load 5N (level 1). The wear rate can be seen to be affected much by control factors as can be seen in the graph above. The configuration under investigation that provided the largest S/N ratio was observed to yield the best quality without fluctuation.

Also, it graphically describes the direction and the magnitude of changes that effect on experimental results depending on the differences in the configuration of control factors within various levels.


Appl Sci Eng J Adv Res 2025;4(3)35
Patharkar U.S., et al. Comparative Analysis of Experimental -Based Wear Rate Investigation

These results highlight the importance of accuracy in controlling these parameters to realize the required performance parameters.

3.3 Analysis of Variance Result

Analysis of variance is commonly used experimental design widely employed to study the influence of more than one independent variable on an experimental study. They include, Fisher’s ratio (F) which compares the variability arising from a specific parameter to the variability due to error. However, in order to evaluate the significance of the parameter, the calculated F value should be compared to the table of the standard F-distribution at a certain significance level (P-value). That is, if the calculated F value is greater than the critical F value, the parameter is considered to play a role in determining the response variable.

Analysis of variance (ANOVA) has a huge importance in determining the significance of models employed in assessing and predicting planned experiments that involve various variables. Fisher test (F test) is employed to analyze the variances in experimental data and also to use the null hypothesis to develop a systematic method of testing the null hypothesis–). The results from the

Table 3: ANOVA Result.

SourceDFAdj SSAdj MSF-
Value		P-
Value		%
Contribution
Coating Type22.868421.43421532.390.00283.88
Temperature20.119130.0595722.110.0433.48
Load20.426640.2133279.190.01212.47
Residual Error20.005390.00269
Total83.41958

ANOVA table are presented showing the significance of each parameter as follows;

In the present analysis the findings of the ANOVA highlighted that all three parameters was significant coating type, load, and load had a p-value less than 0.05. This shows that these parameters effectively have a statistical significance on the bronze material. Furthermore, the total ANOVA table obtained offered the percentage breakdown of each of the factors to the total variance, which indicates the extent of the effect that each of the parameters tested exerts in the case of the experimental results. That is why, these insights confirm the appropriateness of using ANOVA to detect such factors and their significance within the context of the experiment.

Coating type (83.88%), Load (12.47%), and Temperature (3.48%) significantly affect the wear rate. Among these, Coating type has the highest contribution at 83.88%, making it the most influential parameter, while Frequency has the least impact.

3.4 Development of Regression Model for Wear Rate

The regression equation is the analysis derived from the above studied parameters and the we are using the regression equation for finding the wear rates at different level of the experimental parameters. From this equation, the predicted values of wear rates were determined so as to give a much closer look to the experimentally obtained results.

The findings of this research are presented graphically and the plots show that the wear rate data has been predicted accurately by the chosen regression model. This alignment points to robust predictability of the regression equation in capturing the performance and more specifically wear rate under different experimental parameters of inputs.

Regression Equation

Wear Rate=0.0627 + 0.000180 Temperature + 0.000433 Load

Table 3 compares the experimentally measured material removal rates with the values predicted using the developed mathematical model.

Table 4: Experimental and Predicted Values of Wear rate

Sr. No.Experimental valuePredicted valueError %
10.07480.07194.03%
20.07760.07513.26%
30.08110.07823.73%
40.06650.07329.15%
50.07190.07737.01%
60.06690.07399.43%
70.08010.07644.90%
80.07840.07297.56%
90.07880.07603.68%

Comparing between the regression equation wear rate to the experimental values, the difference is within 10% for each experiment and therefore asserting the accuracy of the developed regression model.


Appl Sci Eng J Adv Res 2025;4(3)36
Patharkar U.S., et al. Comparative Analysis of Experimental -Based Wear Rate Investigation

Table 5: Model Summary

SR-SqR-Sq(adj)
0.000499.86%99.45%

3.5 Confirmation Experiment Result

Table 4 presents the difference between the wear rate obtained from the confirmation experiment and the value predicted by the developed regression model.

Table 6: Confirmation Experiment Result

ParameterPredicted valueExperimental valueError %
Wear rate0.072060.06598.54

To compare the results of the Taguchi method with the real conditions, a confirmation experiment was finally conducted at the optimal levels of parameters determined by the former, and the wear rate obtained was compared with that estimated by the regression model when the parameter levels were the same. The percent error of the experimental values with respect to the predicted values was found to be only 8.54%, proving high reliability.

4. Conclusions

This research systematically investigated the tribological behaviors of TiC, CrN, and AlTiN coatings deposited on the gas-nitrided AISI H13 tool steel. The key findings from the analysis are as follows:

Optimal Solution for Wear Rate: The optimal combination of wear parameters to achieve the best wear rate was found to be Coating type is AlTiN (Level 2), Load 5N (Level 1), and 40°C Temperature (Level 1).

[1] ANOVA Results: Analysis of Variance (ANOVA) reveals that the coating typepercentage plays the most prominent role in determining the wear rate. The contributions of each factor to the wear rate are as follows: Coating type: 83.88%, Frequency: 12.47%, and Temperature: 3.48%.
[2] From the obtained ANOVA results, it can be more effortlessly deduced that Temperature has the least effect on wear rate as compared to Coating type and Load. Out of these, the Coating typewas rated as having the most effect on wear rate.
[3] Confirmation Experiment Results: The confirmation experiment showed that the wear rate obtained under the optimal parameter combination was lower, confirming the effectiveness of the suggested parameter levels.

This demonstrates that high-quality can be achieved by applying the optimal levels identified through the Taguchi method.
[4] The wear rate values from the regression model were also very accurate and exhibited prediction errors less than 10% with the actual experimentation data. This supports the regression model and proves its efficiency in wear rate prediction when all of the selected operating parameters are within the observed levels.
