Introduction

The origins of glass, including when and where it was created, remain a mystery. The Latin word "glaeum" actually means "lustrous and translucent materials," which is whence we get our English word "glass." It is possible that it originated in Egypt and Mesopotamia around 3000 to 2000 B.C. Egyptian artisans developed a process for creating glass containers around 1500 B.C. Beads made of what the Egyptians called "faience," or synthetic glass, were the first of their kind. Around two thousand years ago, artisans in Syria developed the art of glassblowing; the Romans later embraced the technique and brought it with them when they invaded Western Europe. By the 13th century, Venice had become the western world's preeminent centre for glass production. As the industrial revolution gained steam, new production techniques made it possible to mass- produce scientific glass equipment, bottles, windowpanes, and many other goods. Glass was widely used as a substitute for precious stones in the production of beads, counters, toys, and jewellery in Eurasia before 1850.

The first people to create glass vases, bowls, and other containers were the Italians, the Romans, and later the Venetians. It's possible that climatic, societal, and political circumstances all played a role in why glass was used differently in different parts of the world as opposed to other places. These mishaps kicked off the shift in western European cultures toward the knowledge innovation-quantification triangle, even though intention, individual psychology, higher intellect, or better resources appear to have little to do with it. As techniques for making glass improved and more complicated glass instruments were made, scientists learned more about the natural and physical worlds, which led to more improvements in making glass.

Glass is used in many different aspects of modern society, research, and technology. The physical, optical, and other qualities of glass make it suitable for a wide range of applications, from tableware to optoelectronic materials, from laboratory equipment to thermal insulators (glass wool), and even to nuclear and solar energy technologies. In addition to its practical applications, it is also used as an aesthetic element. It has permeated almost every facet of modern existence.

Glass made at a slower cooling rate will have a lower enthalpy than glass made at a faster rate. When cooled more slowly than glass, arrangement of atoms will be more like that of a liquid at a lower temperature. It has already been mentioned that there is no one temperature at which glass transition occurs. However, it is helpful to have a single temperature that may be used as an indicator of when glass transformation region begins to form while heating a glass. This temperature, also known as glass transformation temperature or glass transition temperature, is defined by intersection of thermal analysis curve and thermal expansion curve (Tg). The results from two approaches are comparable but not identical. The T results are sensitive to heating rate utilised to generate these curves. The glass transition temperature (Tg) is not an intrinsic attribute of glass itself but rather a byproduct of experimental technique used to detect it and heating rate at which glass was heated during experiment. But Tg can be used as a rough indicator of temperature at which a supercoiled liquid turns into a solid when cooled or at which a solid starts to act like a viscoelastic solid when heated.

Glass Structure

Glass is a non-crystalline substance. The standard pair of glasses is usually quite delicate, and they are also transparent. Glass, as a solid, lacks any semblance of long-range organization. Glasses and crystals are both made up of cation polyhedra, but patterns in which they are arranged are very different. As a super-cold liquid, glass retains its rigidity and inertness while being chemically unchanged between its molten and solidified states. Glass is one of most versatile materials that people have ever made.

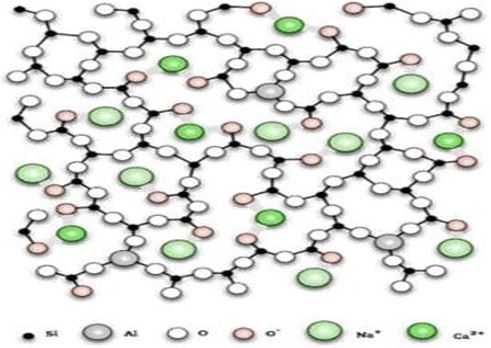

Figure 1: Glass Structure

Glass Molder

Any chemical that has more than one practical application may be broken down further. Alumina is a glass producer in aluminate glasses but a property modifier in most silicate glasses. Every batch of glass relies on its glass former more than anything else. There is always something in glass that provides the bulk of the support structure. These elements are commonly referred to as glass formers, while they go by other names in different oxide glasses, such as network formers or glass forming oxides.

The identification of these elements typically leads to the designation of a generic name for the glass. If, in a given glass sample, silica makes up the vast bulk of the glass component, we refer to that glass as a silicate. If the material also contains a sizable amount of boric oxide, it is known as borosilicate glass. Among the most common oxide glasses on the market, silica (SiO2), boric oxide (B2O3), and phosphoric oxide (P2O5) are the most common glass formers because they readily make single-component glasses. Different chemicals, such as GeO, Bi2O3, As2O3, Sb2O7, TeO2, Al2O3, Ga3O7, and V2O5, can act as glass formers depending on the conditions. The glass former has a binding strength of 60-80 kcal/mol.

Glass Characteristics

The liquid-like nature of glasses gives them special qualities. Liquids are more likely to be transparent than solids. Glasses lack the ability to include internal grain boundaries and orientation-specific structural components. Some distinctive features of glasses are as follows:

Functional Mechanical Properties

Glasses are fragile and their tendency to break depends more on external factors than on the stability of the vitreous network. The fragility of glass can change with its surface treatment, chemical surroundings, and internal stress. It is possible that the glasses will break due to thermal stress. Glass' intrinsic mechanical features include a wide range of useful properties. Both the material's inherent constraints and the architecture of the network influence the elastic modulus. The toughness of glasses is based on the bond strength and atomic packing density in the localised structure.

High-resistance insulating glasses are frequently used. These glasses do not contain any network modifiers. Glasses with high ionic conductivity can be created by using network modifiers, which have a short ion radius. The composition of the glass is also important for these beverages. Substituting sulphide ions for oxygen ions creates a more porous glass, which increases its ionic conductivity. Semi-conducting glasses are so called due to their open structure. They are rich in transition elements, including Fe, Co, Mn, V, and others that can occur in a wide range of valences. For instance, the element V can be both a (+)5+ and a (-)4+ ion. When an electron leaves a (V4+) ion and is picked up by an adjacent (V5+) ion, electronic conductivity results. Chalcogenide glasses, which are mostly made of the elements S, Se, and Te, also have semiconducting properties.

Physical Appearance

Density, a strong function of composition, is the most important measurement for glasses. Additionally, this trait can be used independently to provide light on nearby architecture. Adding the network modifier component causes a density increase because the network modifier ions seek to fill the voids in the original network. SiO2 becomes more compact when alkalis are added to it.

Degrees Celsius Thermal Properties

When developing a product, it's crucial to account for thermal expansion and contraction. Glass swells when heated. If the glass body is kept at the same temperature throughout and the body is not confined, then tension will not build up. Alternately, if the body is heated inhomogeneously, the many glass layers will try to expand in their own unique ways, leading to strain. The tension generated is directly proportional to the temperature at which the material expands. In almost all cases, the thermal expansion of glass increases between 227 and 727 degrees Celsius. It is believed that the negative thermal expansion coefficients arise from the network's ability to absorb lattice expansion by bending links into empty interstices of the structure. The thermal expansion coefficient rises monotonically as alkali is added to the silica network because it disrupts the oxygen bridges. The addition of modifier ions to the glass network decreases the bond bending and, thus, the thermal expansion coefficient.

This is because its field strength is the lowest of all the planets. The charge-to-radius ratios (field strengths) of the divalent alkaline-earth metal ions Mg2+, Ca2+, Sr2+, and Ba2+ range from 0.45 to 0.30 to 0.24. By combining with the surrounding oxygen, it strengthens the network. Ba2+, which has the biggest cationic radius, has less of an effect on the non-bridging oxygen (corresponding to the smallest field strength). Additional co-ordinate links are created when Ba2+ interacts with non-bridging oxygen, although this does not considerably improve the structure. Since BaO has the highest NBOs, BL samples that have BaO as a modifier also have higher optical basicity.

Thermodynamic stability is enhanced when oxygen atoms are given a higher charge. The bulk optical density m of the glass shifts as the network is broken. How Si and B are coordinated, and whether or not the oxide is bridging, determines the answer. Consequently, whereas the optical density m in the bulk remains constant, the optical basicities () assigned to particular oxides vary widely. Taking everything into account,

equation for the calculation of σ of an oxide medium is given by:

σ 1 – [ (zara/2) ( 1-1/γa) + (zbrb/2) (1-1/γb) +….]

a and b are basicity, cation, and total oxide number moderators; za and zb are oxidation numbers; and ra and rb are cation ratios to total oxide number. Because there is only one oxide, the following equation can be used to figure out the optical basicity of borate glass at the microscopic level:

σ 1- (3r_a/2) (1-1/2.36) =1- 0.864 r_a

Boron's coordination is essential for ra. For the silicate system, we can conclude the same thing:

σ 1-(2r_a) (1-1/2.08) = 1-1.038 r_a.

Conclusion

When modifier alkaline earth metals are switched out, there is a drastic shift in the structural, optical, mechanical, and physical properties of glass samples. When a modifier is swapped out of a glass, the number of non-bridging oxygen molecules increases, resulting in a much smaller Eopt (optical energy band gap). Incorporating heavy metals like barium into glass is found to narrow the gap between the glass's electronic and optical bands.
